SQ185 448 kHz RF Beauty Device with CAP & RES Probes
The SQ185 pairs 448 kHz RF with CAP and RES probes for adjustable face and body warmth. Its touchscreen offers 99 energy levels and interchangeable heads.
SQ185 448K Fever Master

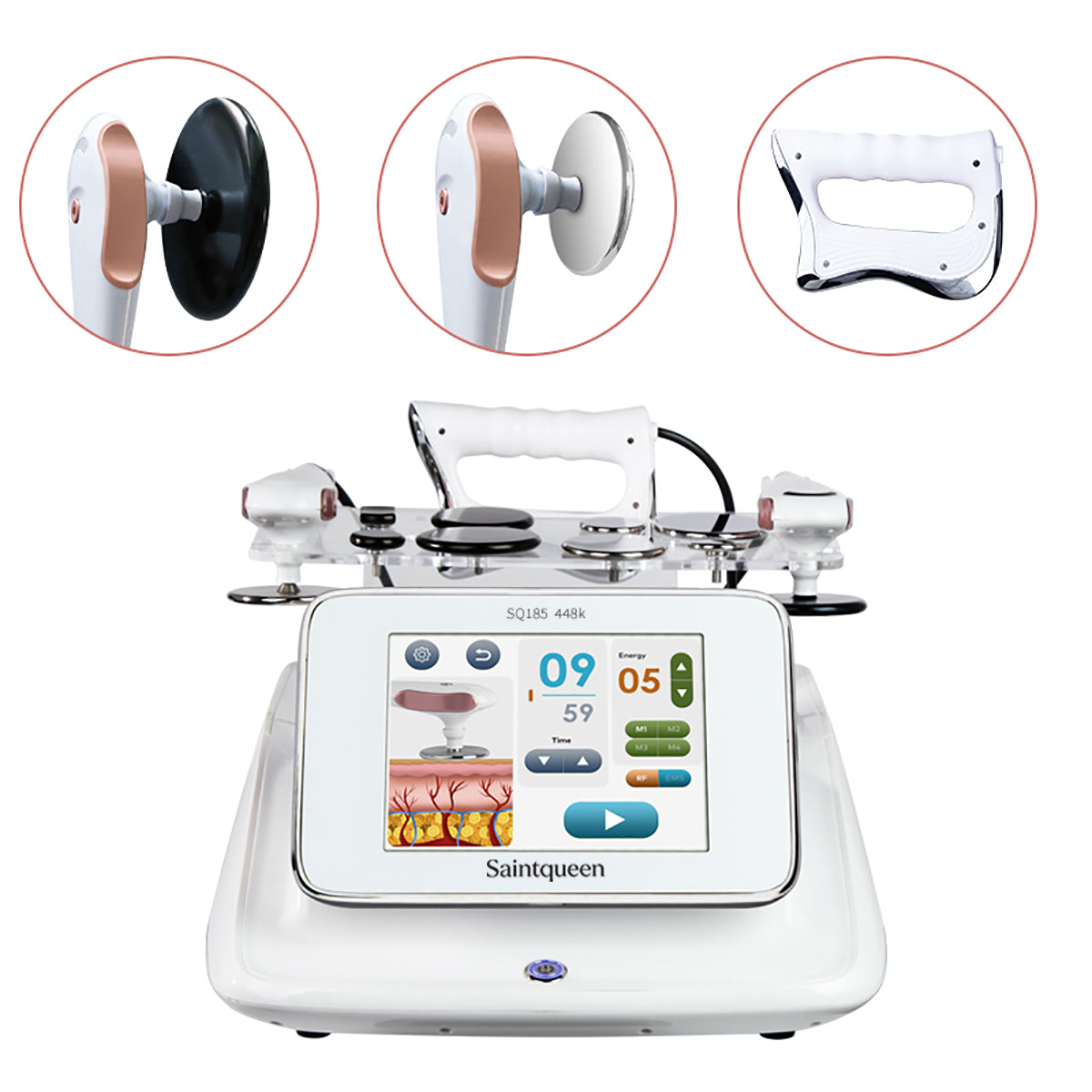

A professional diathermy-style beauty machine built around 448 kHz deep warming. Two complementary probes — capacitive CAP ceramic and resistive RES metal — a JMD fascia device and a stainless-steel negative plate cover face and body from one touch-screen console.
Deep Warmth, Comfortably Controlled
The 448K probe delivers a continuous thermal current through the skin, inputting steady heat energy into the area under treatment — engineered to feel warm, never burning. Four instruments share one console: the CAP ceramic probe, the RES deep-heat probe, the JMD fascia device and the negative electrode patch that completes the circuit.

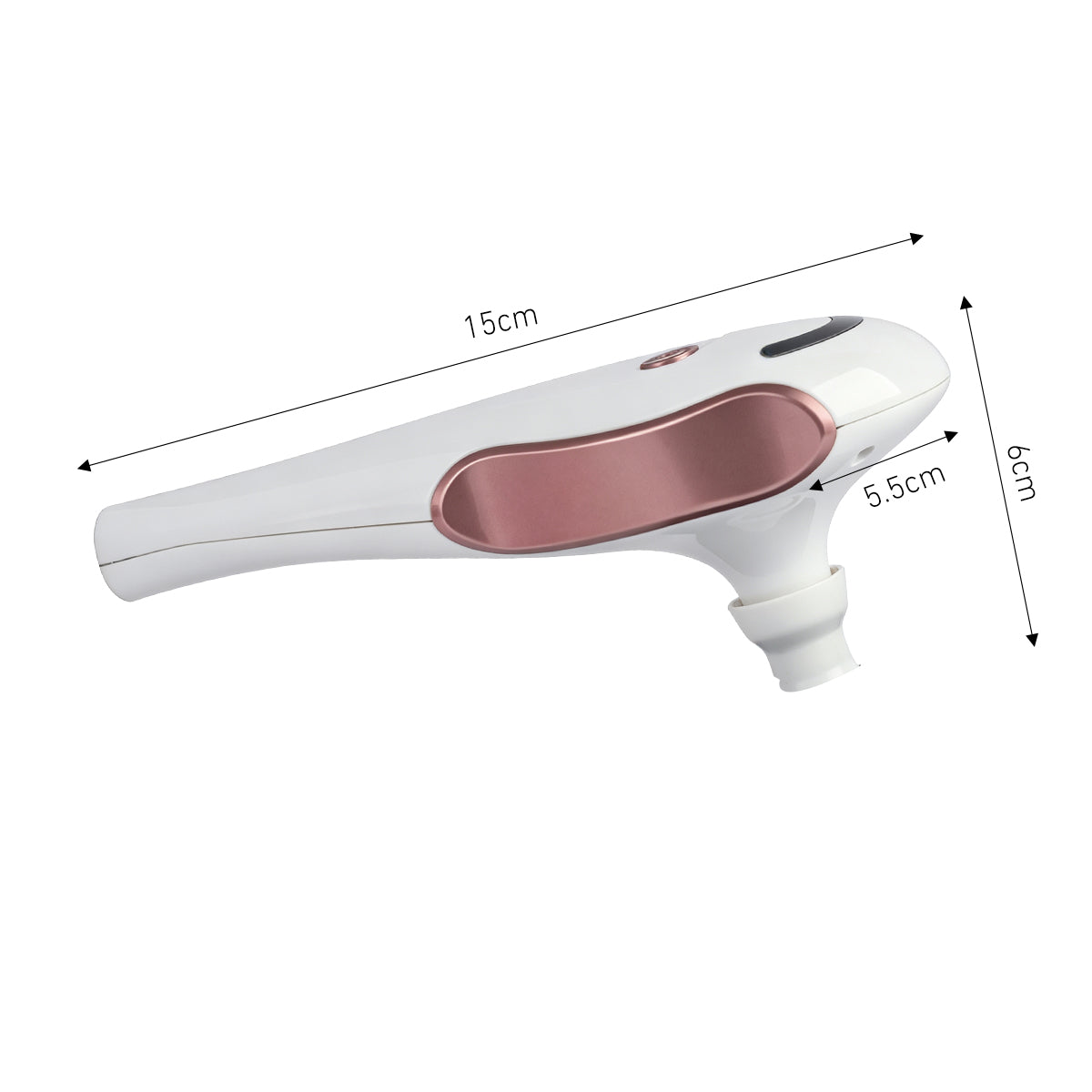

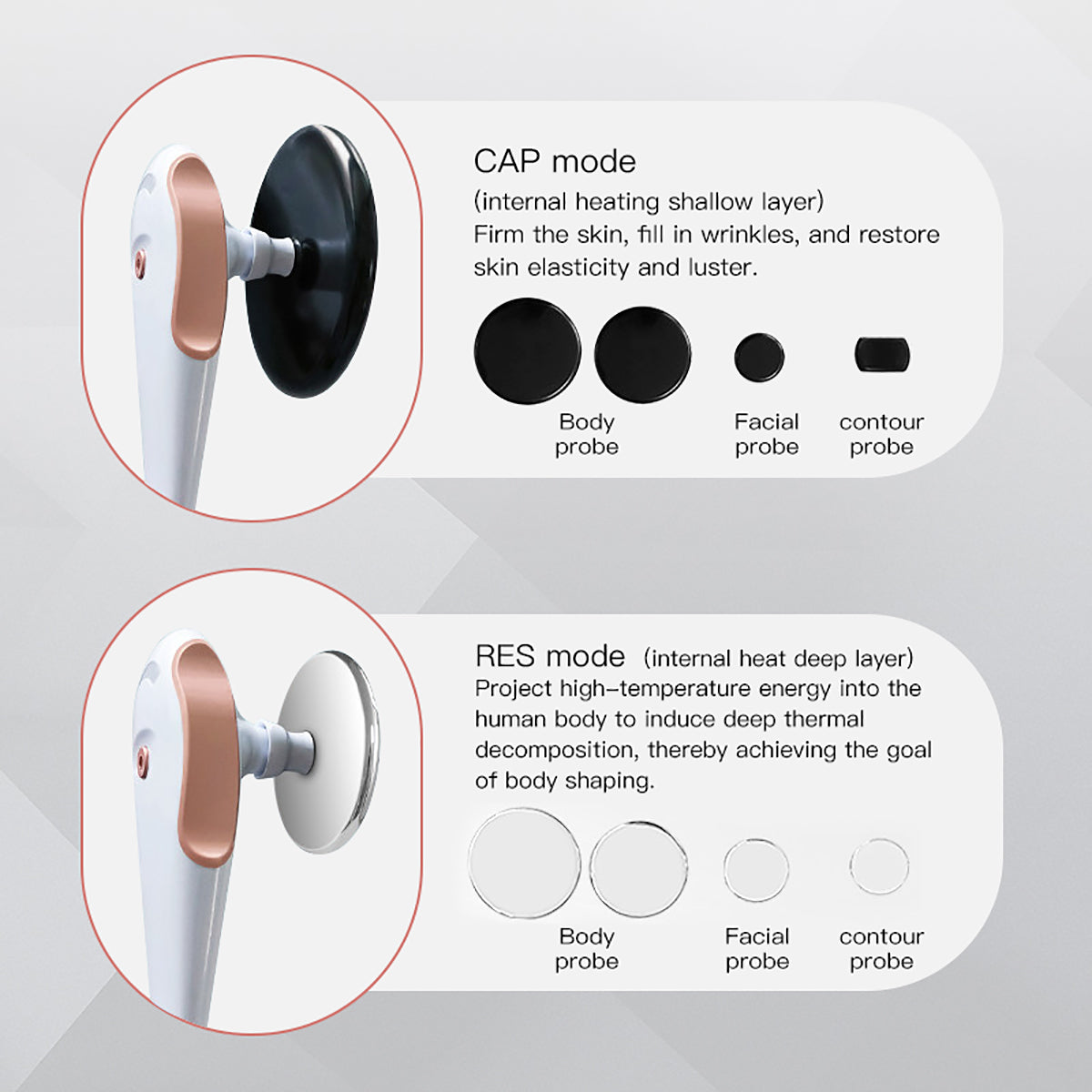

CAP Ceramic Probe — Surface-Focused Warming

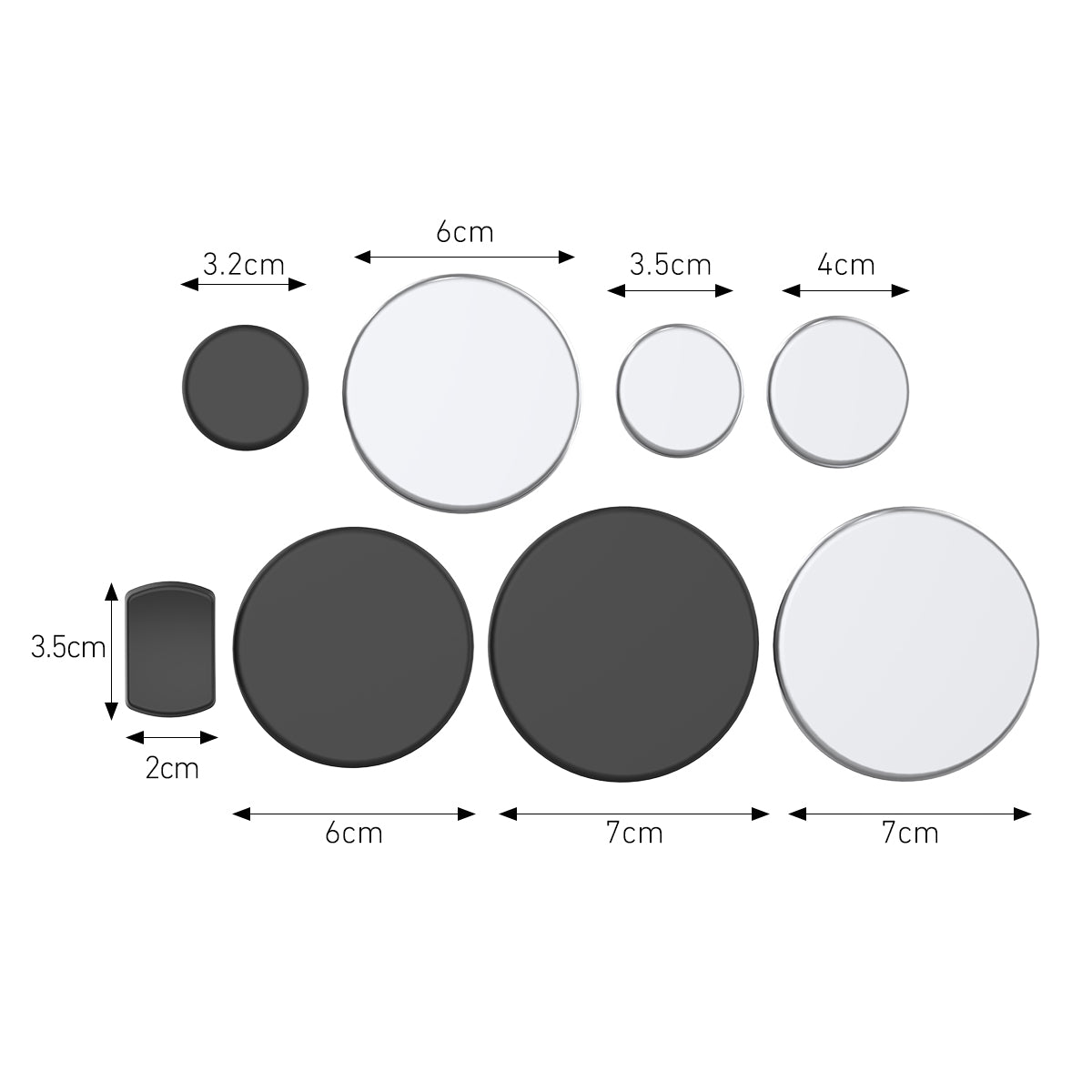

The capacitive CAP probe works through heat conduction toward the superficial, water-rich soft layers. Four ceramic heads snap on and off to match the area: Φ70 mm and Φ60 mm for the body, Φ30 mm and 35 × 20 mm for the face. Set the timer anywhere from 0 to 99 minutes (30-minute default) and dial energy through 99 levels on the function panel.

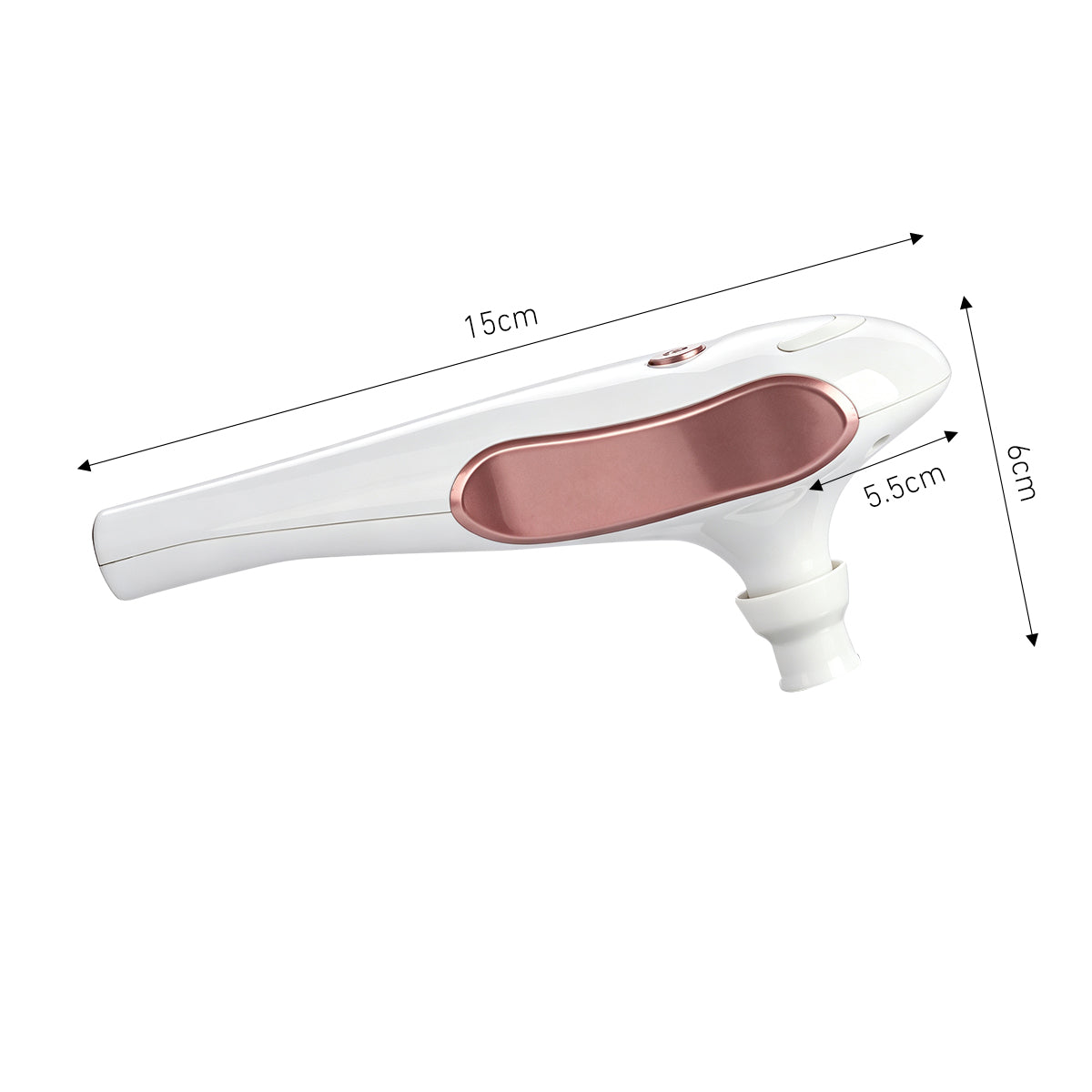

RES Metal Probe — Deep Internal Warming
The resistive RES probe is the deep-heat counterpart: temperature acts on the deeper layers while the surface stays comfortable. Its panel adds RF / EMS switching and four output modes (M1–M4). Four polished metal heads — Φ70, Φ60, Φ40 and Φ34 mm — swap freely between body and facial work.

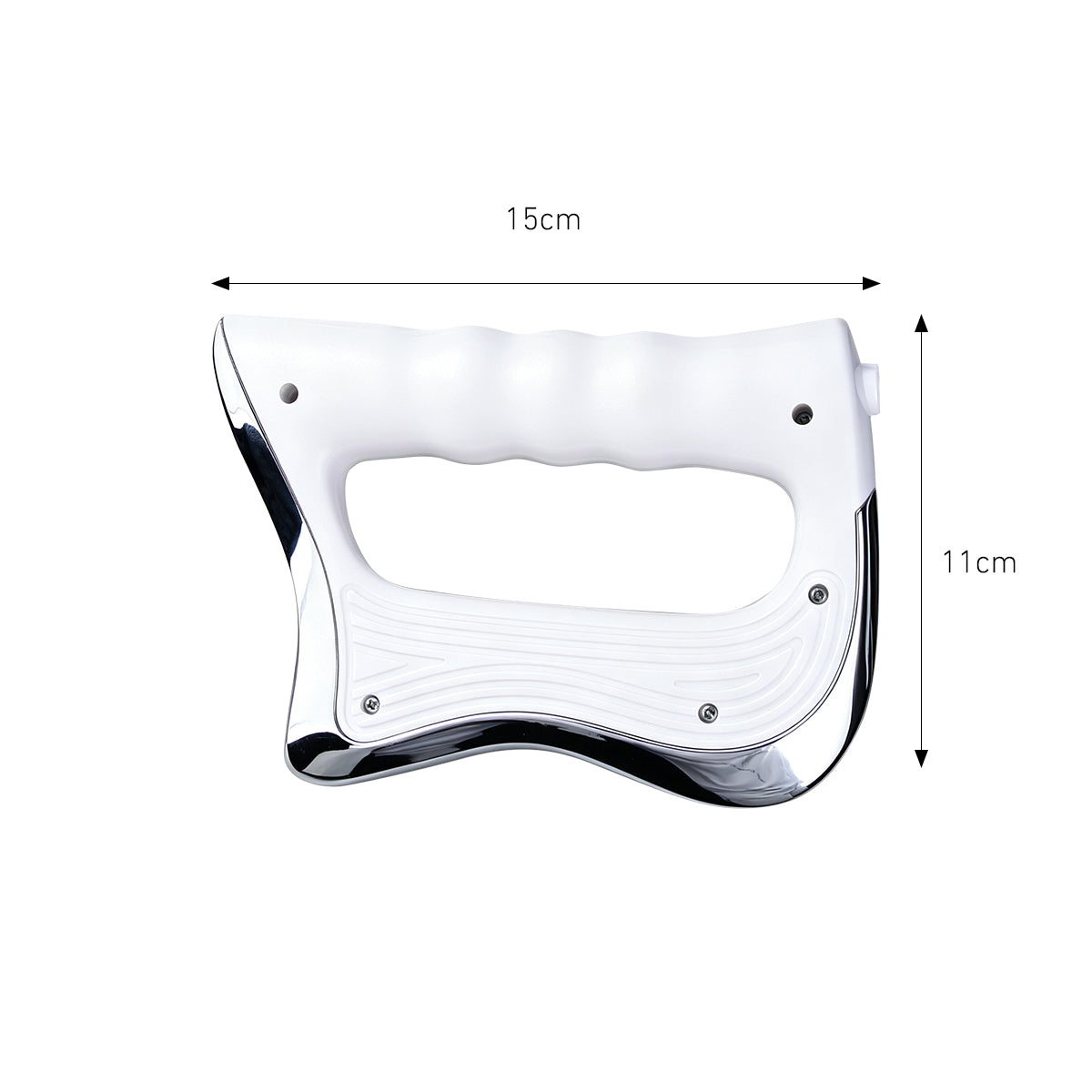

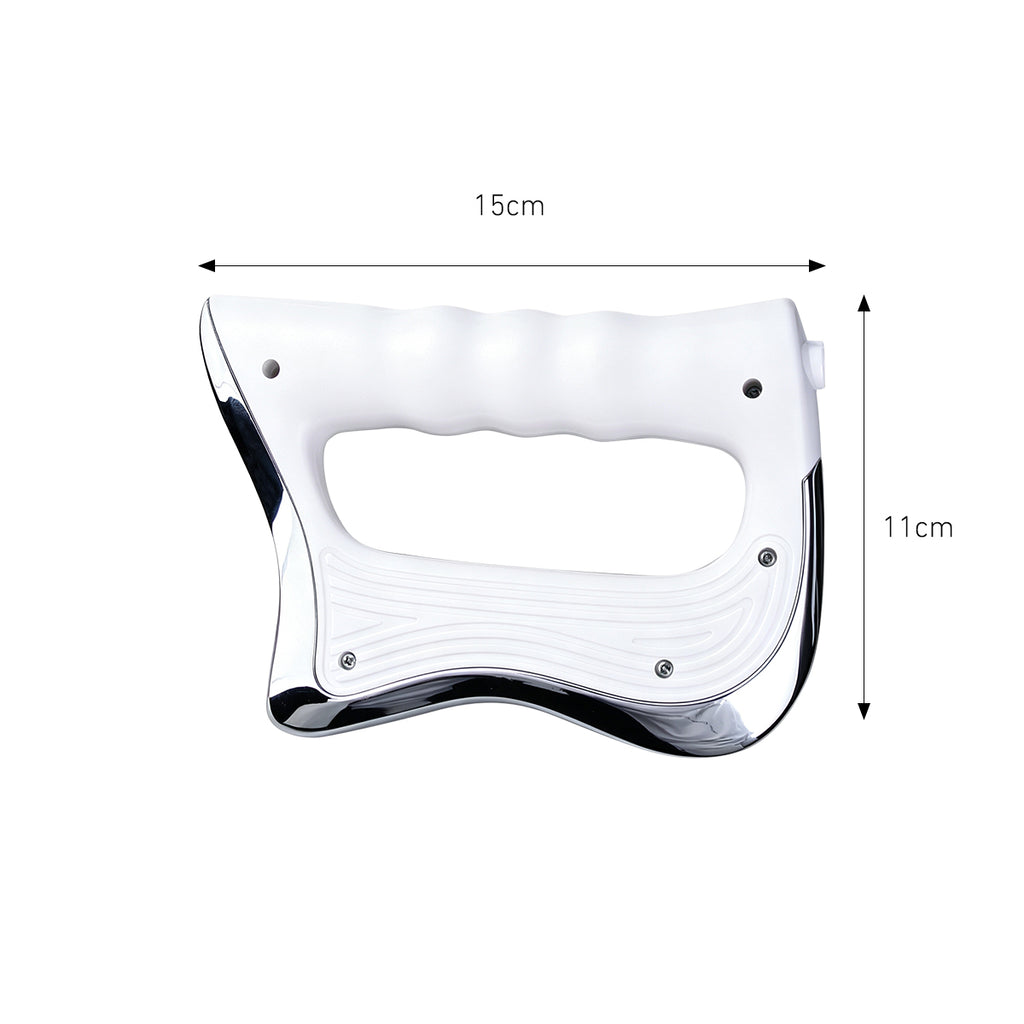

JMD Fascia Device — Microcurrent with Adjustable Heat
Shaped to follow the lines of the muscles, the JMD fascia device adds a microcurrent mode to the system with its own dual adjustment: 99 energy levels plus 20 heat levels, across four output modes. Its wide, contoured head covers large body areas in long, gliding strokes.

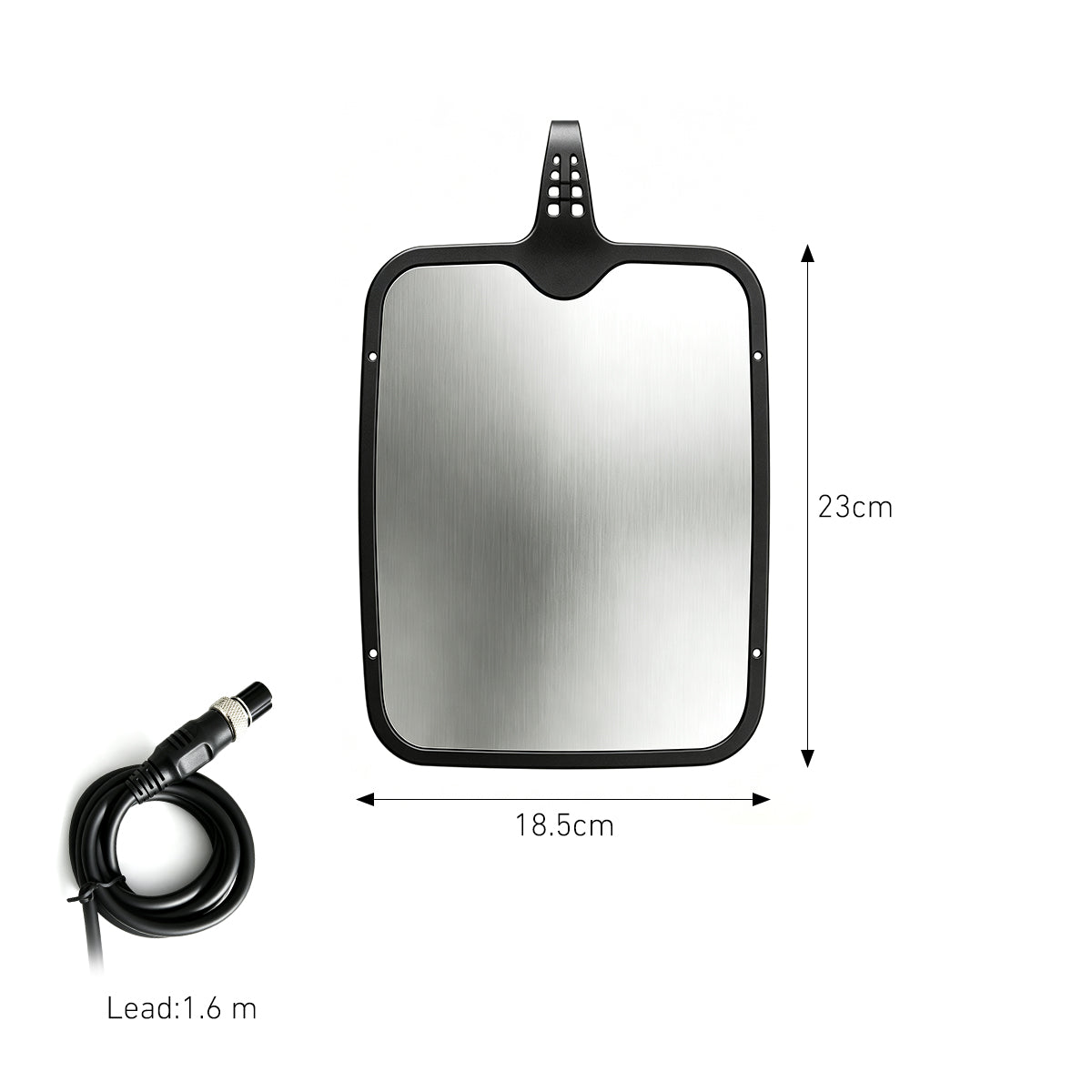

The Negative Plate Completes the Loop
Every CAP, RES and fascia session runs through the stainless-steel negative patch. Placed against the client, it closes the electrical current loop so energy travels through the target area instead of concentrating at the probe. The metal core is wrapped in silicone rubber to avoid energy focusing and hot spots on the skin, and a 1.6 m lead gives flexible positioning.
A Session in Three Steps
Position the stainless-steel negative patch against the client to complete the circuit, then choose the probe and head for the area.
On the touch screen, set the timer (default 30 minutes, up to 99) and start at a low energy level, increasing gradually to comfort.
Press the probe flat against the skin, tap Start, and keep it sliding at all times — never hold it in one position. Tap Pause before lifting it away.
Area guide from the manual: thighs — push from the bottom up toward the groin; hips — slide along the muscle texture toward the waist; back — counterclockwise circles, up and down; arms — from the inner elbow toward the underarm; abdomen — circle around the navel from small to large. For the face, use a facial head from the bottom up, 5–8 minutes recommended. Clients must remove all metal items before a session.
What's in the Box
Main console × 1 · CAP ceramic probe with 4 ceramic heads (Φ70 / Φ60 / Φ30 / 35 × 20 mm) · RES metal probe with 4 metal heads (Φ70 / Φ60 / Φ40 / Φ34 mm) · JMD fascia device × 1 · stainless-steel negative patch with 1.6 m lead × 1 · power cord × 1 · user manual × 1
Specifications
| Product Name | 448K Fever Master (Diathermy Beauty Machine) |
| Model | SQ185 |
| Working Frequency | 448 kHz |
| System | CAP ceramic probe + RES metal probe + JMD fascia device + stainless-steel negative plate |
| CAP Heads | 4 ceramic heads: Φ70 / Φ60 mm (body), Φ30 / 35 × 20 mm (facial) |
| RES Heads | 4 metal heads: Φ70 / Φ60 / Φ40 / Φ34 mm |
| Energy Adjustment | 99 levels (JMD heat: 20 levels) |
| Timer | Default 30 min, adjustable 0–99 min, auto-stop at 0 |
| Modes | M1–M4 output modes (RES / JMD); RF / EMS switching (RES) |
| Voltage | 110–240V |
| Device Size | 45 Ă— 38 Ă— 28 cm |
| Net Weight | About 7 kg |
| Fuse | 10A (5 Ă— 20 mm) |
| Plug Type | US / EU / UK / AU Plug |
| Warranty | Main unit 1 year (free service for faults under normal use) |
The device is a cosmetic beauty device, not medical equipment.
FAQ
Disclaimer & Safety Notes
Disclaimer: This is a cosmetic beauty device, not medical equipment. It is only for aesthetic skin and body care use, not for disease diagnosis or treatment. Pregnant women, minors, people with internal metal implants, medical electronic devices, severe chronic diseases, skin injuries and those wearing any metal accessories are prohibited from using. Please use it correctly and stop use once discomfort occurs. All effects vary by individual physical condition.
Product-specific safety notes (from the user manual):
âś“ Prohibited users: pregnant women; people with heart disease or arrhythmia (especially cardiac pacemakers); cancer, major-surgery or diabetes patients; people with epilepsy or severe hypertension; severe skin wounds or allergies; metal in the body or facial gold-wire implants. Facial surgery patients may use it after three months.
✓ Keep electrodes away from the chest — proximity to the chest can increase cardiac risk. Do not use alongside short-wave or microwave equipment, and keep the machine at least 1 meter from such devices.
✓ The probe must stay in motion during operation — never hold it in one position. Increase energy gradually from a low level and check the client's comfort constantly.
âś“ Clients must not wear any metal items during a session.
✓ For facial sessions, use a facial head from the bottom up; 5–8 minutes recommended.
✓ Leave at least 5 cm of space around the machine for ventilation; operate at 0–26 °C and below 80% relative humidity. Power off and unplug before replacing the fuse.
International mains compatibility: 110–240 V AC.
